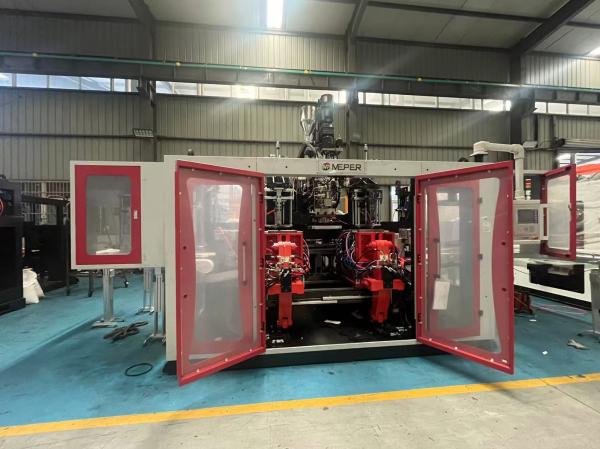

150KN 10L Polyethylene Extrusion Moulding Machine

Name: 150KN 10L Polyethylene Extrusion Moulding Machine
Brand: MEPER
Price: 1 USD

Brand Name : MEPER

Model Number : 80FD

Place of Origin : China

Certification : CE/ISO9001:2008

MOQ : 1 set

Price : negotiable

Packaging Details : standard packaging

Delivery Time : 25-35 work days

Payment Terms : L/C, T/T

Supply Ability : 100 sets per month

Mould clamping force : 150KN

Machine dimension (LxWxH) : 3.5X5.6X2.65M

Machine weight : 13ton

Applicable materials : PE PP

Number of heads : 1 SET

Plate stroke : 600mm

Max product volume : 10L

Platen opening strokes : 240-630MM

Contact Now

Product Description:

The MP plastic blow molding machine is designed for processing various types of plastic hollow products with high molecular weight. It is capable of producing hollow products ranging from 5 milliliters to 100 liters, which encompass a wide range of items such as bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts, among others.

This mchine has the ability to blow different materials including PE, PP, PVC, PA, PC, PS, and EVA, while also ensuring a flawless production process. With its versatility and precision, it is an ideal choice for manufacturers looking to create a variety of hollow plastic products with high quality and efficiency.

Technical Parameters:

System	Item	Unit	Basic Parameter
Basic specifications	Applicable materials		PE PP
	Max product volume	L	10
	Number of heads	SET	3
	Machine dimension (LxWxH)	M	3.5X5.6X2.65
	Machine weight	TON	13

Mould clamping system	Mould clamping force	KN	150
	Platen opening strokes	MM	240-630
	Plate stroke	MM	600
	Max mould sizes(WxH)	MM	580x450

Extrusion system	Screw diameter	MM	90
	Screw slenderness ratio	L/D	26
	Plasticizing ability (HDPE)	KG/H	140
	Screw heating stage/zone	Zone	4
	Screw heating power	KW	20
	Screw fan power	KW	0.56
	Extrusion motor power	KW	45

Head	Head heating stage/zone	Zone	15
Head	Head heating power	KW	16.8

Energy consumption	Total machine power	KW	117
	Oil motor power	KW	29
	Air pressure	MPA	0.6-1
	Compression air volume	M³/min	1.2
	Cooling water volume	L/min	1000

Applications:

Extrusion Molding Applications

Extrusion molding machines are commonly utilized in manufacturing processes to create continuous profiles with consistent cross-sections. Below are some key applications in different industries:

1. Plastic Industry

Pipes & Tubes – PVC, HDPE, and PP pipes for plumbing, drainage, and electrical conduits.
Sheets & Films – Packaging films, agricultural films, and thermoforming sheets.
Profiles – Window frames, door seals, and decorative trims.
Filaments & Fibers – Synthetic fibers for textiles, ropes, and 3D printing filaments.
Cables & Wires – Insulation coating for electrical wires and cables.

2. Rubber Industry

Tire Manufacturing – Rubber strips for tire treads and sidewalls.
Seals & Gaskets – Automotive and industrial rubber seals.
Hoses & Tubing – Fuel hoses, hydraulic tubes, and medical tubing.

3. Food Processing

Extruded Snacks – Puffed cereals, pasta, and pet food.
Confectionery – Licorice, chewing gum, and candy bars.
Textured Protein – Plant-based meat alternatives.

4. Pharmaceutical Industry

Drug Delivery Systems – Extruded tablets and biodegradable implants.
Medical Tubing – Catheters and IV tubes.

Advantages of Extrusion Molding include high efficiency, versatility in processing various materials, and cost-effectiveness due to low waste and high-volume output. Would you like more details on a specific type of extrusion application?

Support and Services:

Our Product Technical Support and Services for the Extrusion Molding Machine include:

- Initial machine setup and installation guidance

- Operator training and troubleshooting assistance

- Regular maintenance recommendations

- Spare parts availability and ordering

- Software updates and technical documentation

- On-site support and repair services

- Remote diagnostic and troubleshooting capabilities
